Process Monitoring System
A New Standard in Practical Process Monitoring

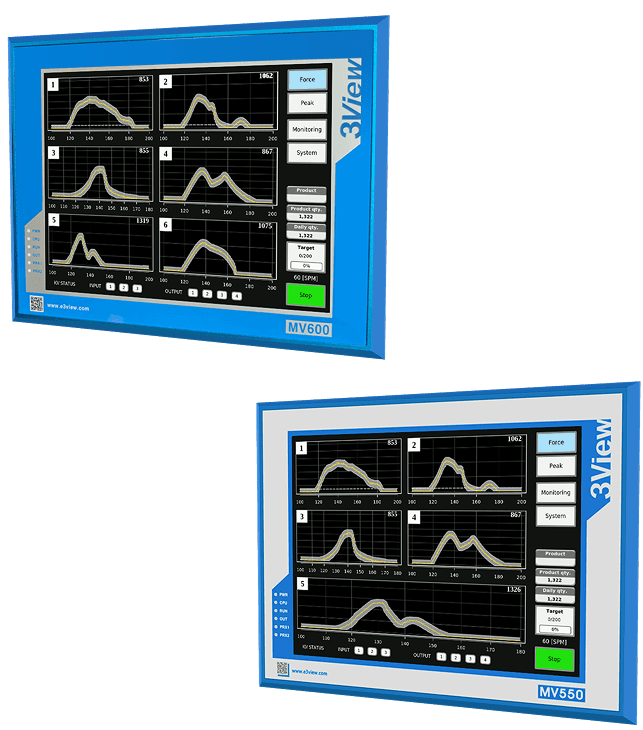

MV600, MV550
A streamlined monitoring solution focused on defect detection for small to medium-sized equipment, including cold formers, presses, and thread rolling machines.
Key Features
Cost Efficiency
Essential functions with lower maintenance costs on Linux
Defect Detection
Detect and Identify the Cause.
Scalability
Works across various metal forming equipment
Expands to POP and MES systems for smart manufacturing
Expected Benefits
Boost Productivity
·Prevent defects and enable unmanned production
Lower Production Costs.
·Unmanned production and process monitoring improve cost efficiency
Minimize Quality Costs
·Catch Defects Early.·Forming force and defect analysis improve product quality
Key Functions
- 01
Product
·Register and manage product codes. Automatically load saved monitoring parameters when selecting a product. - 02
Envelope Curve
·Real-time envelope curves with high detection accuracy and intuitive operation. - 03
AI Learning
·Collect equipment operating conditions and forming force data for optimized monitoring. - 04
Force Management
·Set upper and lower forming force limits. - 05
Force Bar
·Visualize forming force peaks for each process with bar graphs and improve process balance. - 06
Auto Count Stop
·Automatically stop equipment when production targets are reached. Set by quantity or time. - 07
Partial Tolerance Zone
·Set differential rates of tolerance in any section on the envelope curve to fulfill both monitoring accuracy and productivity. - 08
Industry 4.0 IIoT Ready
·Collect sensor data in real time to analyze productivity, and predict the troubles. Can be connected with FactoryVIew™ MES.
Product Specification
* Specifications are subject to change without prior notice
- MV600, MV550
Display
10.4" Touch I/F
OS
Linux
Size (mm)
280*215*45 (WxHxD)
Power input
DC12V
No. of channels
5 (Option 6)
External interface
USB - 2 Port, LAN - 1 Port / DI3 & DO3
Cycle initiator
Inductive sensor
- MV600
Communication
Wired OPC UA server (Provide Key Data on Movement, Speed, and Production Volume)
Our experts will consult with you to determine if this solution fits your site.
